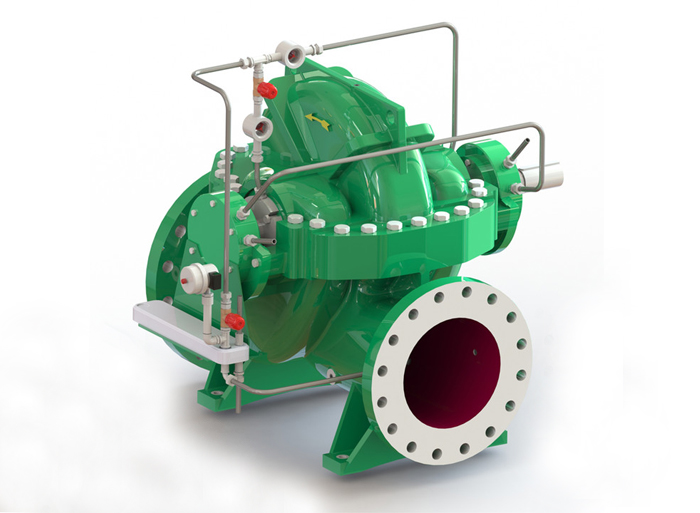

XSR series single stage double entry split case pump is specially designed for transferring circulation water in heat network of thermal power plant and similar circumstance.
The pump for municipal heat network will drive the water flow like a circle in the network. Circulation water which flow back from the municipal heat network will be boosted by the pump and heated by the heater, and then transferred return to the municipal heat network.
Main Performance Data
Flow: 500 - 5,000 m3/h
Delivery Head: 60-220m
Outlet Dia.: 200-500mm
Working Pressure: ≤ 4Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-120℃
Model Instruction
E.G.: XSR200-520 (A/B/C...)
XSR: Single stage double entry split case pump for hot water or similar liquid
200: Outlet diameter is 100mm
520: Rate impeller diameter is 310mm
A(B,C....): Impeller code
Applications
Heating network boosting
Hot water transferring,
Power station water circulation.
Main Parts Configuration
The pump could be applied to liquid with different temperature by customized wet parts, here followed our recommendation:
